Metal pipe boxing – U shaped with internal fixing angle

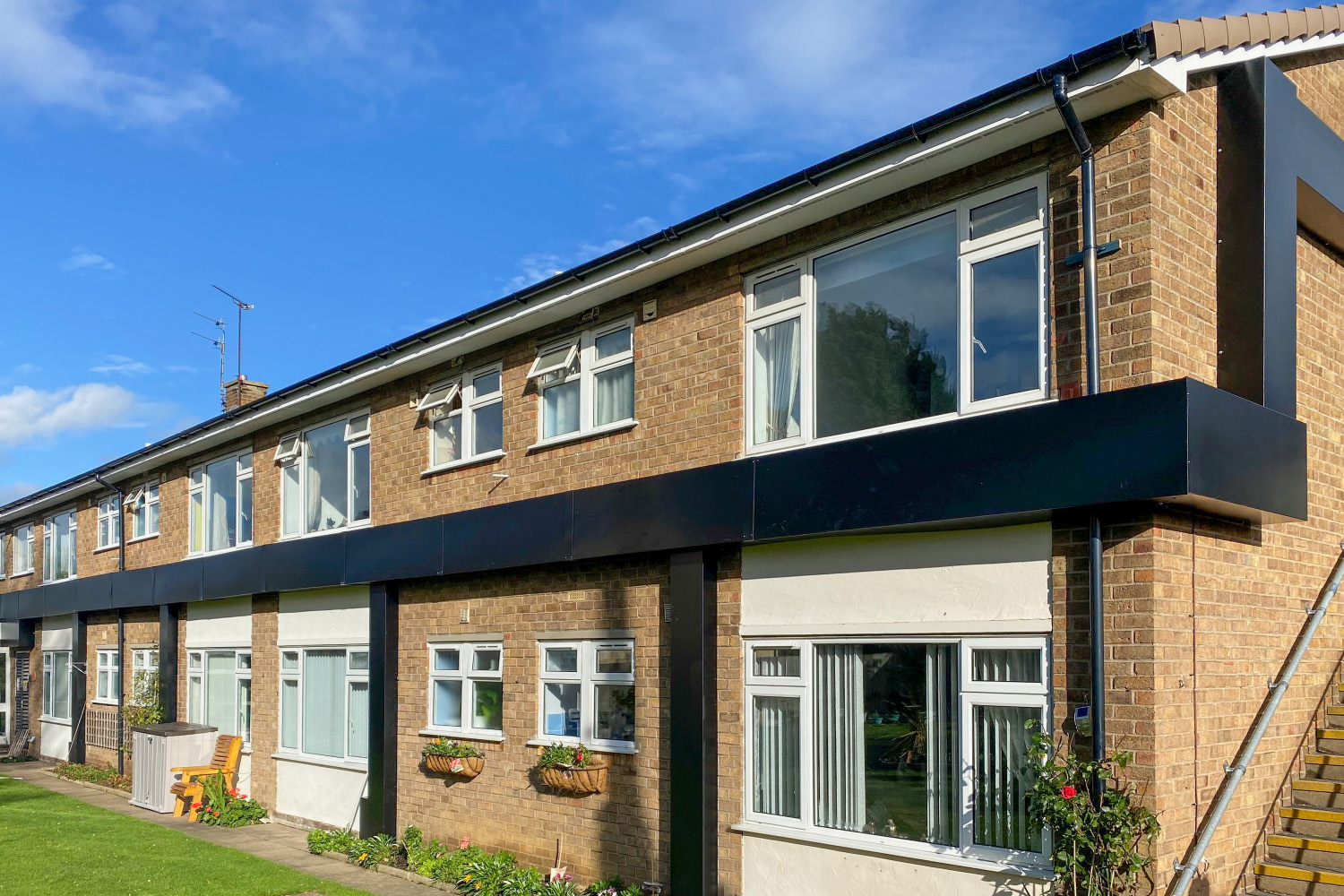

Our U shaped metal pipe boxing is a 3-sided channel design incorporating two 90 degree returns to conceal building services and other utilities, while adding protection from damage, tampering or theft.

Manufactured from 2mm thick aluminium, they are designed to be installed using concealed fixing angles, enabling them to be secured with suitable fasteners in vertical or horizontal mid-wall locations, including ceilings, soffits and bulkheads.

Each length of boxing ordered is supplied with one joint strap, allowing joints between lengths of boxing, accessories and when the boxing abuts a wall or soffit, to be easily concealed.

To order, just select the required depth and height from the drop-down menu, together with the RAL colour and length, then add to your cart and check-out, or Login to save as a quote for purchasing later.

Price range (ex VAT): £64.32 - £341.91 Each

RELATED PRODUCTS

Material: 1050 grade aluminium
Thickness: 2mm
Length: Options from 1000 – 3000mm
Finishes: Polyester powder coated (PPC) in a choice of colours
Fixing: Concealed internal fixing angles using suitable fasteners
Joints: Butt joint concealed with external butt joint covers
Accessories: Internal corners; external corners; stop ends; butt joint covers; fixing angles; colour coded fixings and touch up paint

Weight N/A
Dimensions N/A
Dimensional details
CHM-IFA dimensions
Depth x height size (mm) Nominal internal space (mm) Material thickness (mm) Pipe boxing length (m)
75 x 150 x 75 73 x 146 x 73 2 2000
75 x 200 x 75 73 x 196 x 73 2 2000
75 x 250 x 75 73 x 246 x 73 2 2000
100 x 150 x 100 98 x 146 x 98 2 2000
100 x 200 x 100 98 x 196 x 98 2 2000
100 x 250 x 100 98 x 246 x 98 2 2000
100 x 300 x 100 98 x 296 x 98 2 2000
125 x 200 x 125 123 x 196 x 123 2 2000
125 x 250 x 125 123 x 246 x 123 2 2000
125 x 300 x 125 123 x 296 x 123 2 2000
125 x 350 x 125 123 x 346 x 123 2 2000
150 x 250 x 150 148 x 246 x 148 2 2000
150 x 300 x 150 148 x 296 x 148 2 2000
150 x 350 x 150 148 x 346 x 148 2 2000
150 x 400 x 150 148 x 396 x 148 2 2000
175 x 300 x 175 173 x 296 x 173 2 2000
175 x 400 x 175 173 x 396 x 173 2 2000
175 x 400 x 175 173 x 396 x 173 2 2000
175 x 450 x 175 173 x 446 x 173 2 2000
200 x 300 x 200 198 x 296 x 198 2 2000
200 x 350 x 200 198 x 346 x 198 2 2000
200 x 350 x 200 198 x 346 x 198 2 2000
200 x 400 x 200 198 x 396 x 198 2 2000
250 x 300 x 250 248 x 296 x 248 2 2000
250 x 350 x 250 248 x 346 x 248 2 2000
250 x 400 x 250 248 x 396 x 248 2 2000
250 x 450 x 250 248 x 446 x 248 2 2000
